WATCH UF 2500

Best way to pure water: WATCH UF 2500

Introduction Feature Application Specification Downloads E-Learning

Introduction

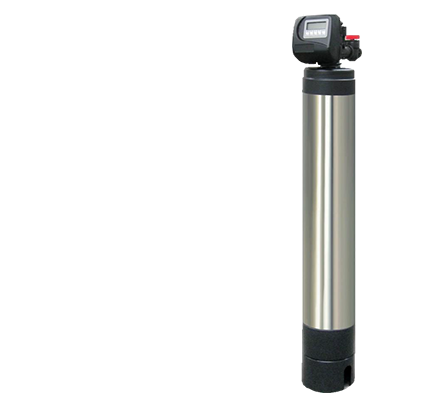

BEST WAY TO PURE WATER: WATCH UF 2500

The most innovative point of entry system for safe removal of pathogens and colloids from drinking water. A standalone unit with the smallest footprint, simple to install and easy to maintain.

Provides more than 2000 liters of pure water per hour thanks to the state-of the art tubular membranes. No storage tanks, no pumps, no electrical valves.

The system is supplied with manual or automatic backwashing valve (bottom drain part available as option).

Feature

20 nm (0.02 microns) absolute filtration rate; 99,99% rejection

Smallest footprint
.
.

Simple installation
.
.

Easy to maintain
.
.

Out-in filtration

No storage tank, no pump

Plain Filtration to fully programmable

Application

Drinking and process water filtration
Pre-filtration for reverse osmosis
Restaurants
Hotels holiday houses

Campings
Remote locations
Seasonal agriculture activities

Specification

SPECIFICATIONS WATCH UF 2500
Flow rate	2.2 to 2.7 m3/h at 25°C and 4 bar
Temperature	2 to 50°C
Pressure	1 to 8 bar
Backwash rate	0.7 m3/h
Size	23 cm diameter x 145 cm height
Weight	16 kg
Cleaning connection	DN 10 (3/8“)
Drain connection	DN 20 (3/4“)
Prefiltration	5 microns, recommended 1 micron
Chlorine	max. 1,0 ppm
Chlorine Cleaning	max 200 ppm
Microorganism removal
Bacteria	4,4 log
Viruses	2,4 log
Cysts	~ 2,0 log
